Cable specifications
Proline heat trace cable is an irradiated self-regulating cable designed for freeze protection on pipes, tanks, and industrial surfaces.
| Product type | Self-regulating heat trace cable |
|---|---|
| Rated output | 5 W/ft at 50°F (10°C) pipe temperature |
| Supply voltage | 120 V / 208 V / 240 V AC |
| Minimum installation temperature | −40°C / −40°F |
| Maximum maintain temperature | 65°C / 150°F (continuous) |
| Maximum exposure temperature | 85°C / 185°F (power-off) |
| Heating core | Irradiated self-regulating polymer |
| Bus wires | Tinned copper, 16 AWG |
| Inner jacket | Modified polyolefin |
| Ground braid | Tinned copper |
| Outer jacket | Flame-retardant TPE (thermoplastic elastomer) |
| Certification | CSA / UL listed for ordinary and hazardous locations |
| Minimum bend radius | 25 mm (1 in) |

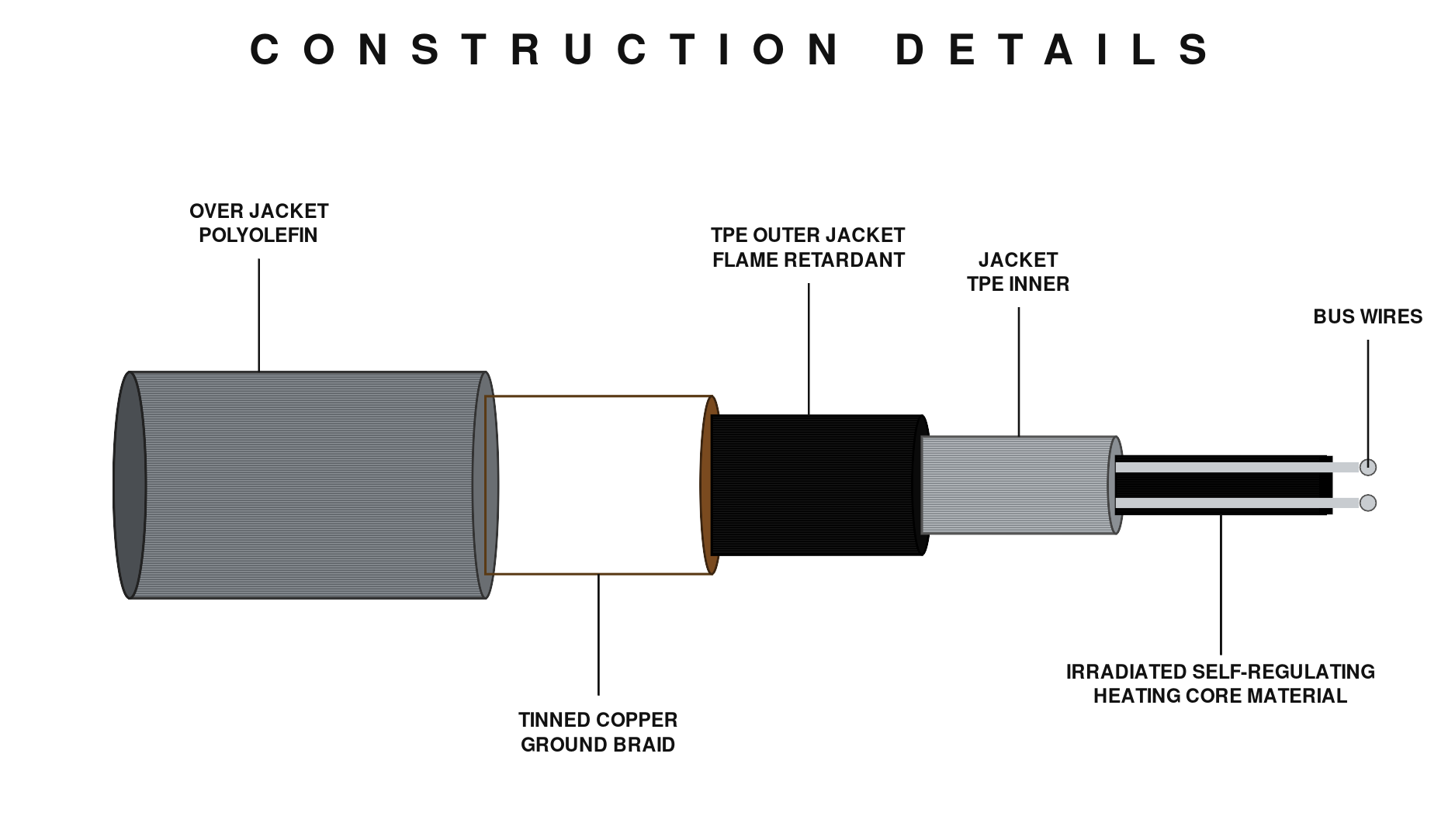

Cable construction — cutaway
